Sega USB hub build - UP Core PC Board



  • I got some great inspiration from the previous Sega USB hub builds with RPIs and wanted to share my Sega USB hub build with a twist.

    Getting started:
    I started this before some of the new retroarch enhancements came out with the "runahead" lag reduction feature - I was disappointed with the built-in "extra" frame of lag in the RPI GL video driver and saw that KMS mode in Linux/PC environments could shave that off. After some research I settled on the UP Core Board with an Atom CPU, built in storage and memory. It's actually smaller than an RPI and arguable much more powerful.

    Build:
    I borrowed heavily from the previous excellently documented Sega USB hub builds, so I don't have much to add as far as ideas go, but I will say that the Up Core board made some things much easier. specifically:

    • built in USB header on board

    • built-in power switch functionality

    • Built-in FAN power header (used for LED)

    • Built-in Wifi connector (purchased a small antenna)

    These saved space and made some things easier. I was able to purchase the right connector to interface with the boards power/reset switch and also solder the USB header connector right to the provided USB hub on the board. I was also able to use the built-in 5v fan header to power the LED on the Sega Hub to make it come on/go off when its powered up/powered down.

    I also used a dremel to cut out the "cartridge" area on the top of the hub and used some perforated plastic/fan covering to hide the heatsink a bit, similar to one of the RPI build I saw in the form here - I think it looks pretty sharp!

    As it stands, a simple push on the power switch will turn on/boot the device, and a slight push/hold will power it down. The LED will light up upon power-on and turn off on power-down. Wi-fi works, I'm able to emulate NES/SNES/Genesis all with Runahead latency mitigation set to 3 frames using KMS video mode in Ubuntu Linux. I'm quite pleased with the build and hope the pics help out if someone was interested in a similar build.

    PICs:
    Again, most of the "design" borrowed heavily from previous Sega hub builds, with modifications as required to use the features above on the Up Core board.

    Stand offs for board - hot glued.
    alt text

    Cutouts for connectors
    alt text

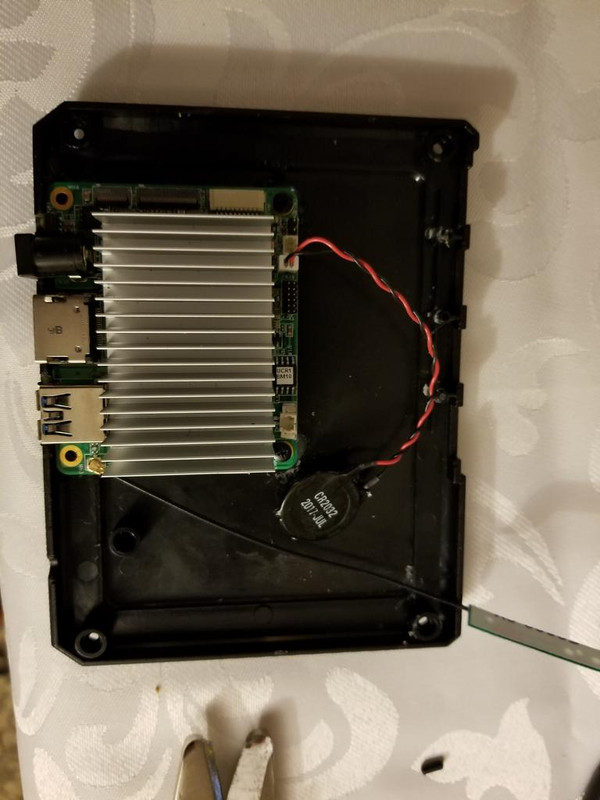

    Fit in the hub case/Mounted. The UP Core board fits PERFECTLY within the "dome" of the cartridge/logo area of the top half of the USB hub. I spaced the standoffs to fit within that part of the dome due to the heatsink being a bit tall.
    alt text

    It fits!
    alt text

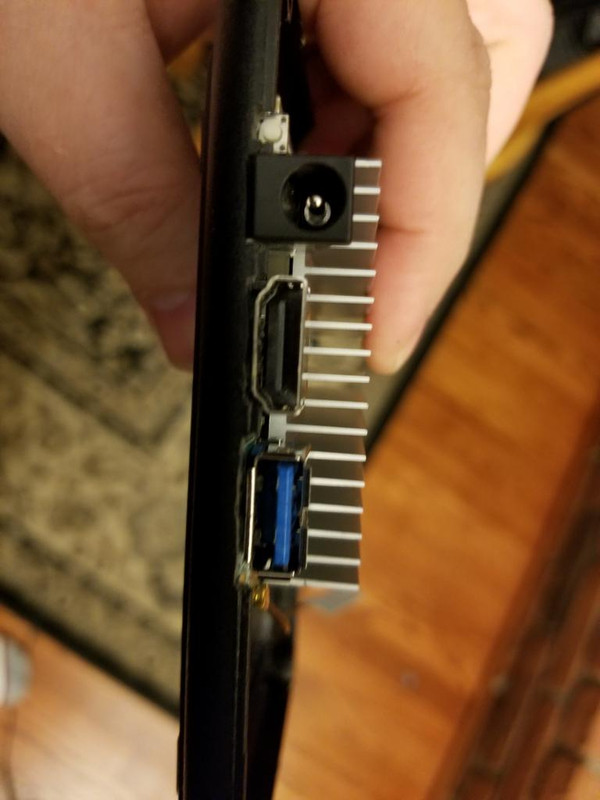

    Rear View/Cutouts
    alt text

    Soldered connections for USB hub
    alt text

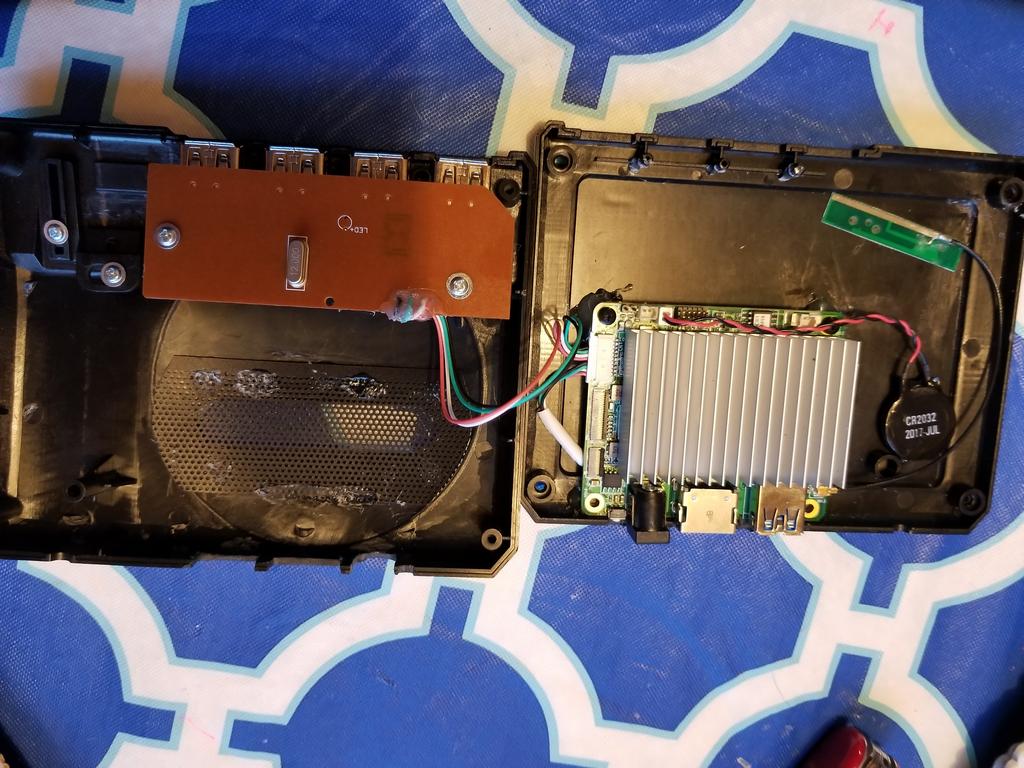

    USB all set, board and hub mounted in case
    alt text

    Fan 5V header for LED connection (required a small resistor)
    alt text

    Power Switch mounted
    alt text

    Everything ready to go!
    alt text

    All done - Works GREAT!!!!!
    alt text
