Wii U Emulator script (PC)

[fadingrose]

Wii U emulator script (PC)

We have a partially working script to get the Cemu Wii U emulator working in Retropie

Took a few hours of frustration first trying to get it to build and run under Linux Mint before i worked on the Retropie script to get it into Retropie and we have success. The emulator gets pulled from github, compiles, builds, installs, makes and so on and then sets up a new system in Retropie.

PLEASE NOTE THIS IS FOR PC!!!

Currently this is an install script for PC and Raspberry pi's are untested (not sure if there is an arm version??) so please be aware, if there is an Arm version and you want to have a go at building etc go ahead although i'm not sure if the Pi is even capable of running Wii U games at playable speeds at the present moment let alone Wii, maybe the Pi5? or maybe wait for a few more Pi releases so a good few years from now. The script is below for anyone to test and report back any issues or support.

Here is the script

#!/usr/bin/env bash

rp_module_id="cemu"
rp_module_desc="Cemu - Wii U Emulator"
rp_module_help="ROM Extensions: .rpx .wud .wux .iso .rpl\n\nCopy your Wii U games to \$romdir/wiiu"
rp_module_licence="https://github.com/cemu-project/Cemu/blob/main/LICENSE.txt"
rp_module_repo="https://github.com/cemu-project/Cemu"
rp_module_section="exp"
rp_module_flags="!all x86"

function depends_cemu() {
    local depends=(
        build-essential
        cmake
        curl
        clang-15
        freeglut3-dev
        git
        libbluetooth-dev
        libgcrypt20-dev
        libglm-dev
        libgtk-3-dev
        libpulse-dev
        libsecret-1-dev
        libsystemd-dev
        libtool
        nasm
        ninja-build
        libusb-1.0-0-dev
        libarchive-dev
        llvm-15
    )
    getDepends "${depends[@]}"
}

function sources_cemu() {
    gitPullOrClone "$md_build" https://github.com/cemu-project/Cemu main
}

function build_cemu() {
    cmake -S . -B build \
        -DCMAKE_BUILD_TYPE=Release \
        -DCMAKE_C_COMPILER=/usr/bin/clang-15 \
        -DCMAKE_CXX_COMPILER=/usr/bin/clang++-15 \
        -DCMAKE_AR=/usr/bin/llvm-ar-15 \
        -DCMAKE_RANLIB=/usr/bin/llvm-ranlib-15 \
        -G Ninja || error "CMake configuration failed"

    cmake --build build || error "Build failed"

    if [[ ! -f "$md_build/bin/Cemu_release" ]]; then
        error "Cemu binary not found, build might have failed"
    fi

    md_ret_require="$md_build/bin/Cemu_release"
}

function install_cemu() {
    md_ret_files=(
        'bin/Cemu_release'
        'LICENSE.txt'
    )

    # Write the launcher script
    cat > "$md_inst/cemu-launch.sh" << '_EOF_'
#!/bin/bash

/opt/retropie/emulators/cemu/Cemu_release "$@"
_EOF_

    chmod +x "$md_inst/cemu-launch.sh"
}

function configure_cemu() {
    mkRomDir "wiiu"

    local launch_prefix=""
    isPlatform "kms" && launch_prefix="XINIT:"

    mkdir -p "/opt/retropie/emulators/cemu"

    # Generate default config file if it doesn't exist
    local config_file="/opt/retropie/emulators/cemu/settings.toml"
    if [[ ! -f "$config_file" ]]; then
        cat > "$config_file" << _EOF_
[General]
fullscreen = true
language = "en"
_EOF_
        chown $user:$user "$config_file"
    fi

    if [[ "$md_mode" == "install" ]]; then
        mkUserDir "$md_conf_root/cemu"
        mkUserDir "$md_conf_root/cemu/$md_id"
        moveConfigFile "$home/.$md_id" "$md_conf_root/cemu/$md_id"
    fi

    addEmulator 1 "$md_id" "wiiu" "$launch_prefix$md_inst/cemu-launch.sh %ROM%"
    addSystem "wiiu" "Nintendo Wii U" ".rpx .wud .wux .iso .rpl"
}

At the moment currently i have got this far

1 - Emulator builds and installs and sets up a new system in Retropie
2 - When you add a rom to the roms folder and run a game like any other system it just shows the emulator in a window

It's progress but now i need to work out arguments and other such things. Feel free to take it, test it, add feedback and so on.

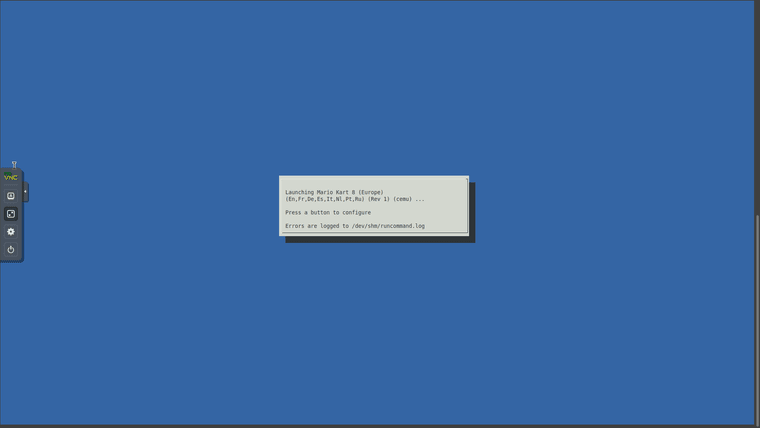

A few screenshots below of my progress

[fadingrose]

The emulator doesn't come with a standard bios, every game has to be decrypted with a key that matches the game and region so the emulator can read the game data. A user will have to source a set of up to date keys which are a key.txt file.

Some arguments below i found

--- Launch options ---
-g Path of game
-f Launch in fullscreen mode
-ud Render output upside-down
--- Extractor tool ---
-e Path to WUD or WUX file for extraction
-p Path of file to extract (for example meta/meta.xml)
-o Output path for extracted file.

Just figuring out the default key.txt location so i can run a game and then work out how to get the keys stored under /BIOS/wiiu and have the emulator automatically see them in the location.
