Dragon's Lair no sound
-
@grant2258 said in Dragon's Lair no sound:
ok here is what to try
cd /opt/retropie/emulators/daphne/
mv dapinput.ini dapinput.ini.bakdo me a favour dont touch your joystick or controller. just start the emulator and use the keyboard 5 and 6 for credit 1 2 for controls for action and arrow keys.
now start the emulator from emulation station and dont use the joystick just the keyboard
what do you mean by cd /opt/retropie/emulators/daphne/
mv dapinput.ini dapinput.ini.bak also i haven't been using a joystick, olny a keyboard till i get it working. -
if it still doesnt work its probably your ogg files are in the wrong place
-
@grant2258 said in Dragon's Lair no sound:
if it still doesnt work its probably your ogg files are in the wrong place
So my ogg file is in daphne.lair but dragon's lair 2, space ace work fine its just the lair thats not working
-
ok the emulator is fine then i thought you meant no sound worked
ls -alh /home/pi/RetroPie/roms/daphne/lair.daphne/
paste the output
-
@grant2258 said in Dragon's Lair no sound:
ls -alh /home/pi/RetroPie/roms/daphne/lair.daphne/

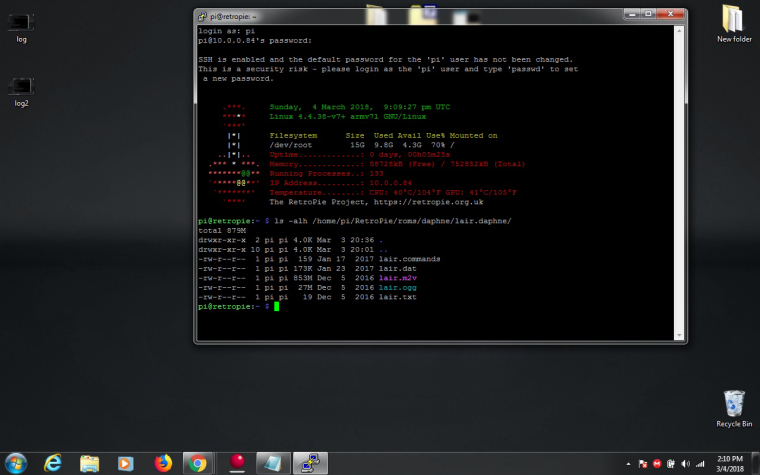

Is this what your talking about?
-
ok permissions are good case in files is good. Now only thing i can think of is your lair.commands has a silent switch been put on in it.
type
cat /home/pi/RetroPie/roms/daphne/lair.daphne/lair.commandscat /home/pi/RetroPie/roms/daphne/lair.daphne/lair.commands
-nocrc -noissues -nolog -noserversend -latency 950 -x 640 -y 480 -blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -bank 0 11111001 -bank 1 00100111 -
When i typed cat /home/pi/RetroPie/roms/daphne/lair.daphne/lair.commands this what i got
-
have you tried playing the ogg file on your windows machine just double click it it should open a internet browser
-
@grant2258 said in Dragon's Lair no sound:
have you tried playing the ogg file on your windows machine just double click it it should open a internet browser
It seems to play in vlc, the ogg file was downloaded using a pc and the dvd i own. Where could i get a different ogg file?
-
we cant give links else get banned on here
do this
md5sum /home/pi/RetroPie/roms/daphne/lair.daphne/lair.ogg1dc644a30b14526338c1af756b5cdb5c /home/pi/RetroPie/roms/daphne/lair.daphne/lair.ogg
try using the different bin files one might match your ogg
ls -b /home/pi/RetroPie/roms/daphne/roms/lair* | grep -v "lair2"
/home/pi/RetroPie/roms/daphne/roms/lair_a.zip
/home/pi/RetroPie/roms/daphne/roms/lair_b.zip
/home/pi/RetroPie/roms/daphne/roms/lair_c.zip
/home/pi/RetroPie/roms/daphne/roms/lair_d.zip
/home/pi/RetroPie/roms/daphne/roms/laireuro.zip
/home/pi/RetroPie/roms/daphne/roms/lair_e.zip
/home/pi/RetroPie/roms/daphne/roms/lair_f.zip
/home/pi/RetroPie/roms/daphne/roms/lair_ita.zip
/home/pi/RetroPie/roms/daphne/roms/lair_n1.zip
/home/pi/RetroPie/roms/daphne/roms/lair_x.zip
/home/pi/RetroPie/roms/daphne/roms/lair.zip
/home/pi/RetroPie/roms/daphne/roms/lair.zip.md5 -
this should help you with any dvd questions
https://retropie.org.uk/forum/topic/1574/dragon-s-lair-from-daphne-download-what-to-do-when-no-lair-zip-file/18 -
So i figured it out. Only one speaker was working on my monitor. All the daphne games will work with 1 speaker except lair. move beeps from one speaker and background music and sound from the other one. Thank's for every one's help.
-
@dizmodawg here is your problem..sorry I didn't see this sooner..
you must add the correct configuration to the game or you WILL have that problem. ( the background music for Badlands for example not playing.) I learned this setting up attract mode on my PC with the "default setup". Many games you'll have that problem. Here's how to fix it:
- create a file called dle21.commands in the /home/pi/RetroPie/roms/daphne/dle21.daphne folder
i.e. /home/pi/RetroPie/roms/daphne/dle21.daphne/dle21.commands
-
you can build it in nano or drop it via ssh
-
(I use the dle21 version because the dlair version will skip the drawbridge scene)
- paste the command below into the file:
-blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -bank 0 11111000 -bank 1 00110111 -noserversend -volume_vldp 64 -sound_buffer 960
- save it
try it and let me know if that helps :D
Here is my original post at the atractmode fourm here.
-
@akafox said in Dragon's Lair no sound:
@dizmodawg here is your problem..sorry I didn't see this sooner..
you must add the correct configuration to the game or you WILL have that problem. ( the background music for Badlands for example not playing.) I learned this setting up attract mode on my PC with the "default setup". Many games you'll have that problem. Here's how to fix it:
- create a file called dle21.commands in the /home/pi/RetroPie/roms/daphne/dle21.daphne folder
i.e. /home/pi/RetroPie/roms/daphne/dle21.daphne/dle21.commands
-
you can build it in nano or drop it via ssh
-
(I use the dle21 version because the dlair version will skip the drawbridge scene)
- paste the command below into the file:
-blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -bank 0 11111000 -bank 1 00110111 -noserversend -volume_vldp 64 -sound_buffer 960
- save it
try it and let me know if that helps :D
Here is my original post at the atractmode fourm here.
Ok i will try in a couple hours when i get home, Thanks!
-
@dizmodawg I would hesitate before using @akafox's commands suggestion above for Dragon's Lair DLE21, as the DIP switch settings are not good. They may work, but appear to be possibly borrowed from another ROM configuration. I am referring to these command line parameters:
-bank 0 11111000 -bank 1 00110111Some of them may work, but right off the bat I can see that they disregard the Normal Operation setting which should have A3=ON and A7=ON. In the suggested string, A7=OFF and there is no corresponding mode for that combo. There are likely other oddities, such as audio disabled during startup/attract mode (no relation to the software by that name). Or, why is B7=ON set? That puts you into prototype mode. These DIP switches are erroneous as far as I can tell.You can see a nice reference to the DIP switch settings you can use here.
Also, nothing you can do in the command line will prevent the audio from going to separate speakers as it does with this game. This is how the sound worked in the original cabinet. There are HD versions of the media that have the sounds mixed to both left and right channels, but that is different, and not controllable via command line.
-
@caver01 said in Dragon's Lair no sound:
@dizmodawg I would hesitate before using @akafox's commands suggestion above for Dragon's Lair DLE21, as the DIP switch settings are not good. They may work, but appear to be possibly borrowed from another ROM configuration. I am referring to these command line parameters:
-bank 0 11111000 -bank 1 00110111Some of them may work, but right off the bat I can see that they disregard the Normal Operation setting which should have A3=ON and A7=ON. In the suggested string, A7=OFF and there is no corresponding mode for that combo. There are likely other oddities, such as audio disabled during startup/attract mode (no relation to the software by that name). Or, why is B7=ON set? That puts you into prototype mode. These DIP switches are erroneous as far as I can tell.You can see a nice reference to the DIP switch settings you can use here.
Also, nothing you can do in the command line will prevent the audio from going to separate speakers as it does with this game. This is how the sound worked in the original cabinet. There are HD versions of the media that have the sounds mixed to both left and right channels, but that is different, and not controllable via command line.
Your right don't work so i'm just going to use some tower speakers.
-
@caver01 Strange I will look into that thank you. The command line I used there was directly from the daphne gui. But shrugs I will look into this further :)
-
@akafox that is odd, as I would not expect it to generate invalid DIP switch settings. Any chance you were using the regular ROM in the GUI to generate it? The DIP switches are definitely different for the DLE21 than for ROMF or the regular ROM.
-
Regardless, the speaker issue which ended up being the root cause of the OP cannot be “fixed” without replacing the media files. I ran into this gotcha when I was first setting up my cabinet to run Daphne. I had a problem with one of the Left/Right channels and did not realize it and wondered why I was not getting all of the audio in DL.
-
(Note that i am working from linux here..NOT windows..note also that the pi is linux based!)
dle21 rom command line:
./daphne dle21 vldp -framefile "$HOME/.daphne/vldp/dle21/dle21.txt" -blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir $HOME/.daphne -bank 0 11111000 -bank 1 00110111 -sound_buffer 2048 -x 640 -y 480dlair rom command line:
./daphne lair vldp -framefile "$HOME/.daphne/vldp/dle21/dle21.txt" -blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir $HOME/.daphne -bank 0 11111001 -bank 1 00100111 -sound_buffer 2048 -x 640 -y 480So you are correct the dips switch settings are different. I used the dle21 rom because the default dlair rom was skipping the drawbridge scene. (As noted here. So pick the version you want to use I guess. shrugs
dle21.command file:
-blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir $HOME/.daphne -bank 0 11111000 -bank 1 00110111 -sound_buffer 2048dlair.command file:
-blank_searches -min_seek_delay 1000 -seek_frames_per_ms 20 -homedir $HOME/.daphne -bank 0 11111001 -bank 1 00100111 -sound_buffer 2048The original cabinet may not have been "stereo"..but do not quote me on that. I found that when running Dragon's Lair the "sound" is on the left channel, the "narration" from the right channel. Go with caver01 on this one ;)
Getting a copy of the full command from the gui (i.e. daphne loader) and using the ENTIRE command line that was generated I was able to run and start it the game DIRECTLY from the command line and/or Attract Mode and everything worked "flawlessly" on my PC. So I generated one config for each game.
I had the same issue on the pi until I added the dlair (dle21).command file..edited correctly of course as shown above. Using the compatibility list on the retropie wiki I was able to create a .command file for each game. They all work great now.
