    Zero Delay USB Encoder and potentiometers

    Scheduled Pinned Locked Moved Help and Support
    usb encoderzero delay usbpotentiometer
    7 Posts 4 Posters 4.2k Views
    Loading More Posts
    • Oldest to Newest
    • Newest to Oldest
    • Most Votes
    Reply
    • Reply as topic
    Log in to reply
    This topic has been deleted. Only users with topic management privileges can see it.
    • T
      The Walker
      last edited by

      Hi everyone, I want to add a potentiometer (one like this https://www.robotstore.it/images/products/potenziometro_lineare_10kohm.jpg) for a personal use, since I'm a big big fan of driving simulator I'm thinking of using this also for these games and not just for retrogaming.

      Now, straight to the point, I'm a complete noob at soldering and similar, that's why I decided to use this encoder for normal buttons. But the pot has 3 pins, there is a way to connect it to the encoder? Where should I connect the third pin? Thx in advance

      DougAD 1 Reply Last reply Reply Quote 0
      • DougAD
        DougA @The Walker
        last edited by

        @the-walker
        Unless yours is different to those I have seen, I think you will find that your Zero Delay USB encoder is digital only, so connecting a potentiometer to it would only give an or or off signal. You would probably do a lot better buying a USB steering wheel. Have a look here for advice on configuring one first though.
        https://github.com/RetroPie/RetroPie-Setup/wiki/Spinners,-Trackballs,-Lightguns,-and-other-Mouse-Devices

        T 1 Reply Last reply Reply Quote 0
        • T
          The Walker @DougA
          last edited by

          @douga
          Got it, for example this (https://www.arcadeworlduk.com/products/a-pac-analog-digital-dual-gamepad-interface.html) should work since it provides digital and analog input.
          Are there other usb encoders that provides both inputs?
          Anyway I need the potentiometer for a working clutch paddle

          1 Reply Last reply Reply Quote 0
          • DorkVonWaterfallD
            DorkVonWaterfall
            last edited by

            maybe try the Ultimarc U-HID or U-HID Nano (depending of how many buttons you need)

            01001110 01101111 01100010 01101111 01100100 01111001 00100000 01101011 01101110 01101111 01110111 01110011 00100000 01101001 01100000 01101101 00100000 01100001 00100000 01101100 01100101 01110011 01100010 01101001 01100001 01101110 00100001

            1 Reply Last reply Reply Quote 0
            • T
              The Walker
              last edited by

              Great.

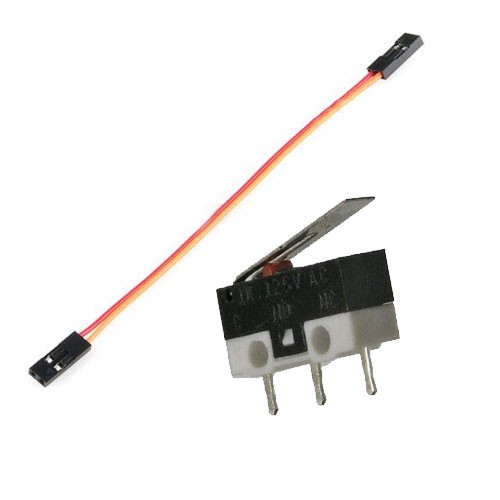

              Another question, I will use the encoder for the retrogaming, and I want to add a microswitch. Can I use a female-female 2-pin jumper wire instead of the provided cable? I'm asking because the switch I have has this pins, like a jumper wire
              https://www.3drap.it/wp-content/uploads/microswitch_cavetto.jpg

              caver01C 1 Reply Last reply Reply Quote 0
              • caver01C
                caver01 @The Walker
                last edited by caver01

                @the-walker You can use anything that conducts electricity. I would not recommend taping spoons to your switch, but it would work if you could keep them in contact with your pins!

                I used spade-style crimp connectors on my microswitches and crimped them to both ends of CAT5 network wires which were easy to distinguish from one another due to the orange, white, green, blue, brown. This also kept everything nice and neat while allowing custom lengths.

                My 4-player cocktail style cabinet built as a custom "roadcase"

                T 1 Reply Last reply Reply Quote 0
                • T
                  The Walker @caver01
                  last edited by

                  @caver01 Great then, thanks!

                  1 Reply Last reply Reply Quote 0
